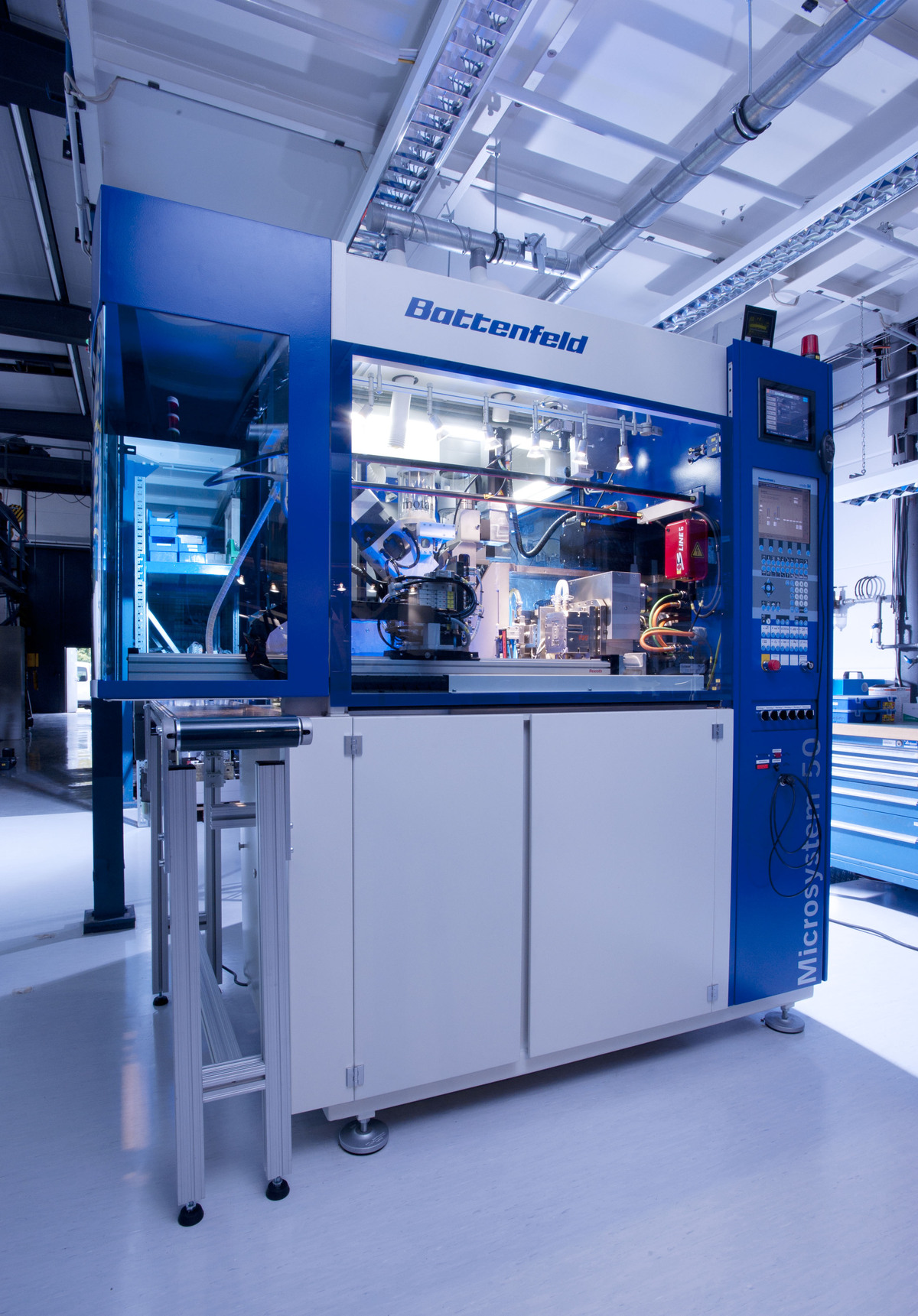

Two-component micro injection molding machine Microsystem 50



 Injection units in horizontal L-position



Size (according to EUROMAP1)) 80 - 3
Clampingforce 8 t
Mounting plate dimensions (H x V) 150 x 196 mm2
Tool installation height min. / max 100 / 250
Piston diameter 5 mm
Minimum material requisition 2 x 50 ml
Equipment Part inspection by camera, ionization module, handling module

Special Equipment
  • Variotherm process and tool evacuation
  • Extruder screw with PIM-optimized geometry
  • wear-protected injection units
  • Special programs (2C-MicroPIM, micro compression injection
Among others used for:
  • 2C microcomponents with smallest masses
  • Process analytics 2C micro injection molding
  • Micro compression injection
  • compatibility tests ( → 2C-MicroPIM)



  1) 1st number: Clamping force [kN]
2nd number: max. displacement [cm3] x max. injection pressure [kbar]
